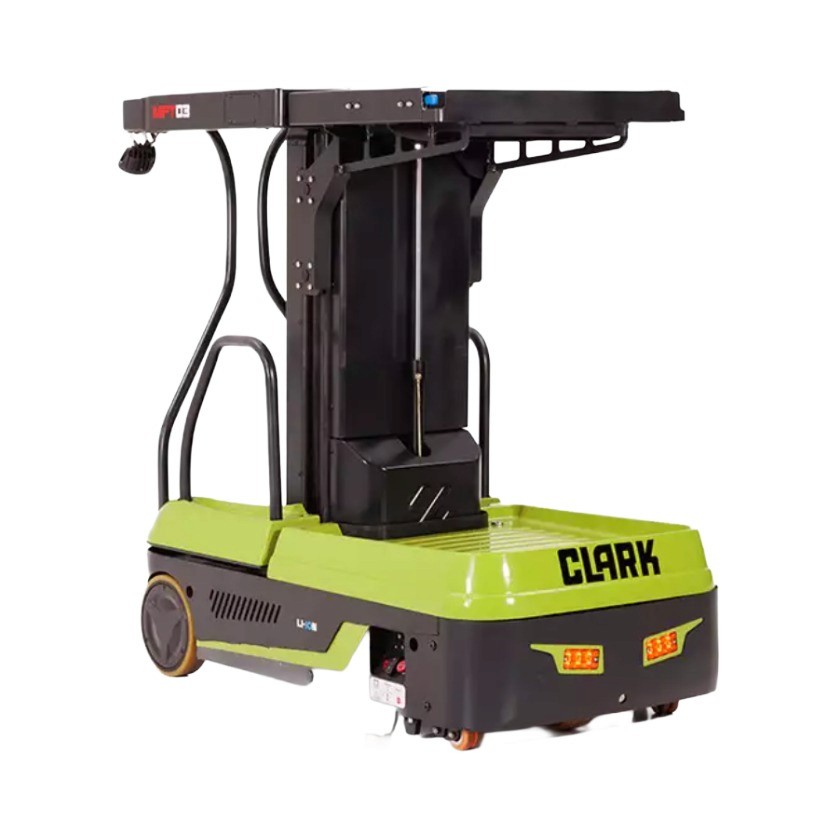

CLARK MPT03

The CLARK MPT03:
Compact and Versatile Order Picker

The CLARK MPT03 is an ultra-compact, multi-purpose electric order picker engineered to maximize workplace safety and efficiency across indoor logistics, facilities maintenance, and retail environments. Seamlessly combining the core functions of a mobile workstation, a secure rolling safety ladder, and an adjustable elevating work platform into a single nimble unit, it represents an ideal alternative to risk-prone conventional step ladders.

Equipped with simultaneous drive and lift capabilities, the MPT03 streamlines warehouse workflows by allowing operators to transition between locations while matching picking heights. Its ultra-short chassis, tight turning radius, and responsive electronic power steering provide precise control inside highly restricted spaces, making it a highly reliable solution for retail stockrooms, distribution hubs, museums, and light industrial facilities.

Key Dimensions & Core Specifications

• Max Weight (Load Capacity): 300 kg (Supports an active operator along with inventory on the height-adjustable storage tray).

• Max Platform Height: 2,995 mm (Provides a safe, comfortable working reach height up to approximately 4.5 metres).

• Operating Vehicle Width: 750 mm (Specially engineered to slide effortlessly through standard interior door frames and narrow retail layout paths).

Smart Workstation Integration & Operator Safety

• Simultaneous Drive & Elevate: Built with advanced control circuits allowing the operator to smoothly adjust elevations while traveling to significantly accelerate picking cycle times.

• Automatic Intelligent Speed Regulation: Features integrated safety sensors that automatically scale down vehicle travel speeds as the passenger platform rises to ensure maximum chassis stability.

• Self-Locking Structural Safety Bars: Designed with secure side enclosure bars that automatically lock into place before operation to eliminate fall risks during high-level inventory retrieval.

• Telescopic Visual Storage Shelf: Outfitted with an adjustable front parts tray (550–850 mm) featuring built-in viewing slots so operators maintain a clear field of vision while driving.

• Five-Wheel Stability Layout: Built around a low physical centre of gravity and a 5-point ground contact concept to prevent swaying or tipping on facility floors.
